SMOKE DETECTOR
TECHNICAL DATA
Description Colour Model

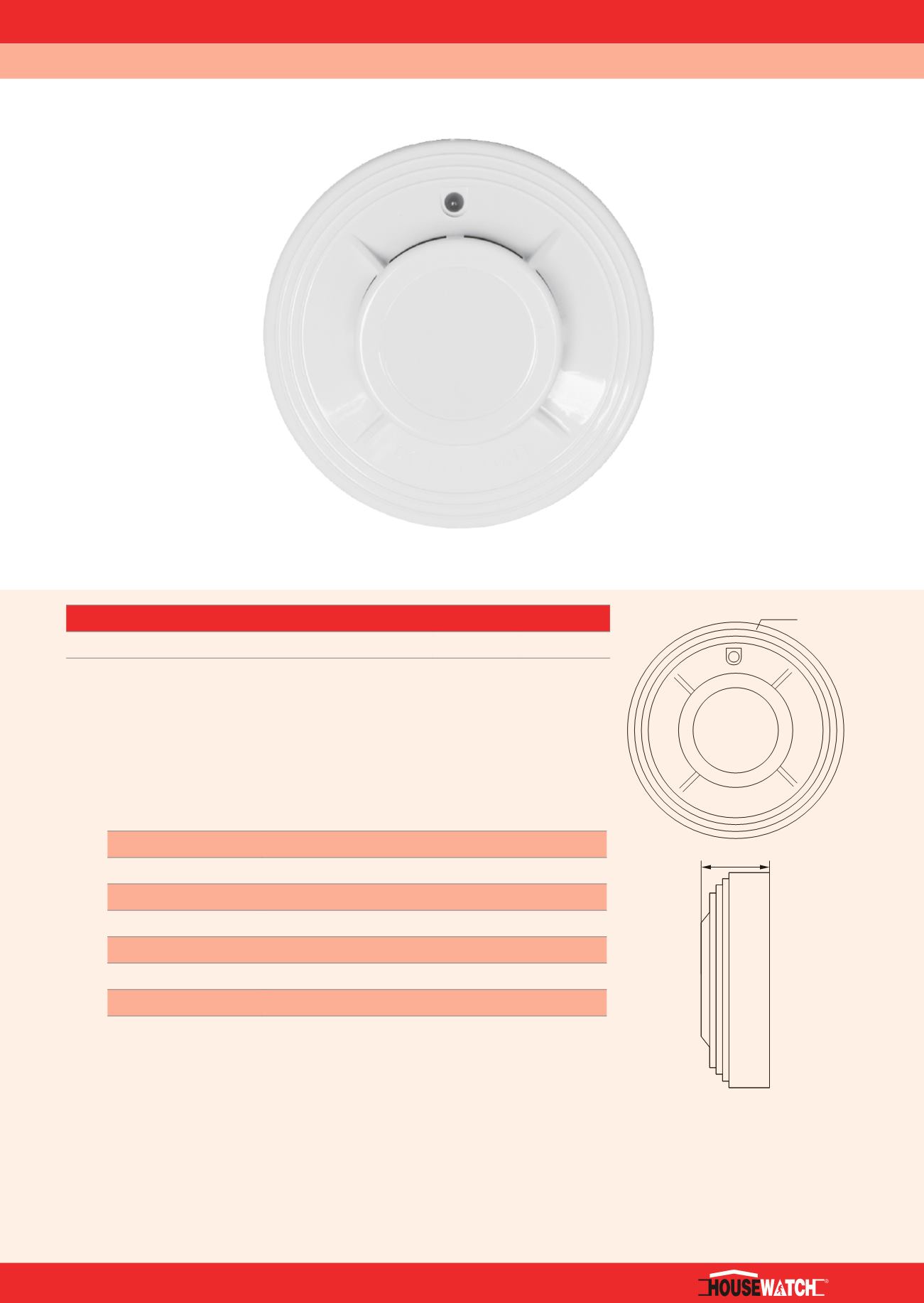

Smoke Detector, Photoelectric, 12V DC, 85dB, 4 Wire White 71-132
Operating Voltage 12V DC (nominal)
Standby Current 60µ Maximum Average
Alarm Current 20mA Maximum Average and 12V DC
Relay Current Rating 1 Form A, .5A and 30V DC
Humidity Range 10% to 93% RH, Non condensing
Temperature Range 32˚ to 120˚F (0˚ to 50˚C)
Dimensions 44.5 (h) x 140mm dia
• Non-latching
• 85Db alarm horn
• External push button provides a test of the detector’s alarm function
• A normally open auxiliary alarm relay with an 8 second delay
• Visible LED indicator flashes once every 30 seconds in standby and rapidly (every 0.5 seconds)
in alarm when detecting smoke
71-132
PHOTOELECTRIC DETECTORS
ø140mm 44.5mm
ø140mm 44.5mm
