INFRARED DETECTORS

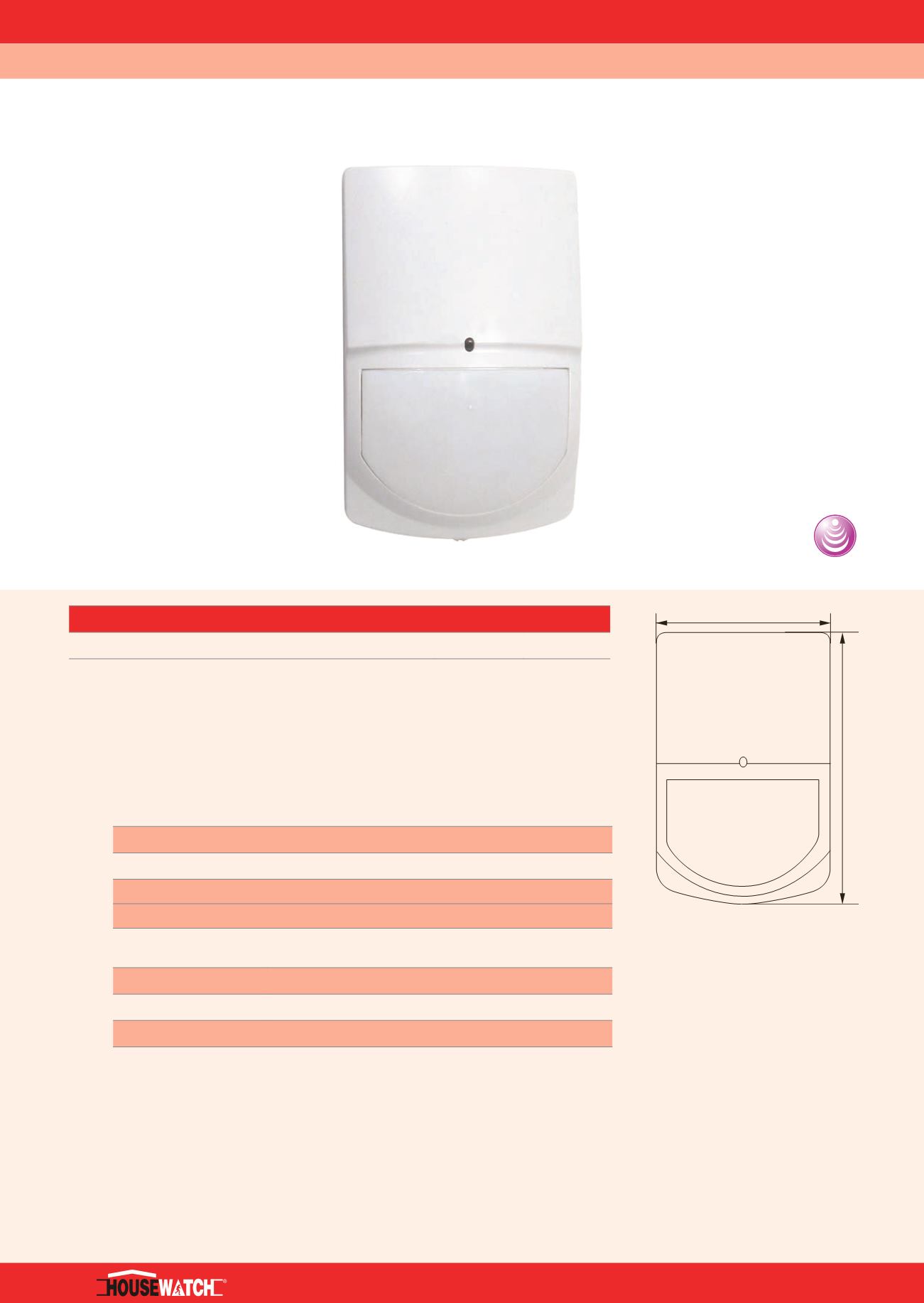

PASSIVE INFRARED/MICROWAVE DETECTOR
TECHNICAL DATA
Description Colour Model
Microwave Dual Quad Technology, 15m, 12V DC White 50-044
Detection Method Quad Element PIR & Microwave Pulse Doppler
Power Input 8.2 to 16 V DC
Current Draw Active – 25.5mA
Standby – 16.5mA
Temperature
Compensation Yes
Alarm Output N.C 28V DC 0.1A with 10 Ohm Series Protection Resistors
Tamper Switch N.C 28V DC 0.1A with 10 Ohm Series Protection Resistor
Dimensions 123 x 62 x 38mm
• Combination of PIR and Microwave
• Quad (four element) pyro sensor and hard lens for outstanding detection performance and
elimination of false alarms
• 2 way Microwave and PIR sensitivity adjustment
• Bi directional temperature compensation
• Environmental immunity
50-044
55mm
90mm
